Description

Introducing the all-new Dakota Lithium LTO Battery, engineered to set a new standard in energy storage. Powered by cutting-edge Lithium Titanium Oxide (LTO) technology, this battery offers unmatched cycle life, rapid charging, and exceptional durability—even in the harshest conditions. Whether you’re powering high-demand systems or seeking long-lasting energy solutions, the Dakota Lithium LTO battery is designed to outperform traditional lithium-ion options with up to 10,000 charge cycles, ensuring years of reliable, consistent power.

Designed with the possibility of a drained battery in mind. The built-in Battery Management System (BMS) Jump Start function retains a 25% state of charge. When activated, it releases this remaining 25% to help you start your vehicle. If you accidentally leave your lights on and drain your battery, simply press the jump start button to get your vehicle started!

Built for efficiency and endurance, the Dakota Lithium LTO Battery is your go-to solution for the toughest energy demands. Experience a new era of energy storage, where innovation meets longevity, with Dakota Lithium.

Technical Specs

Best in Class 11 Year Warranty

World-class quality with an eleven-year manufacturer defect warranty.

Storage Capacity

20 Ampere hours (Ah). Dakota Lithium batteries provide consistent power for all 20 Amp hours. DL LTO batteries have a flat voltage curve, which means they have a steady power output as the battery discharges. The power output will not dramatically drop like similar sized SLA batteries. You get all the juice down to the last drop.

Chemistry

Lithium Titanium Oxide (LTO)

Voltage

12.0V

Watt Hours

240

Low Voltage Cutoff

7.5±0.03V

Size

8.15"L X 6.89"W X 7.48"H (207mm X 175mm X 190mm) Group Size 21, but is compatible with battery sizes: 49, 99, 99R, 102R, 140R

Weight

11.02lbs (5kg)

Terminals

SAE Terminal (Standard Automotive Post)

Cold Cranking Amps

1100A (850CCA @ -18°C)

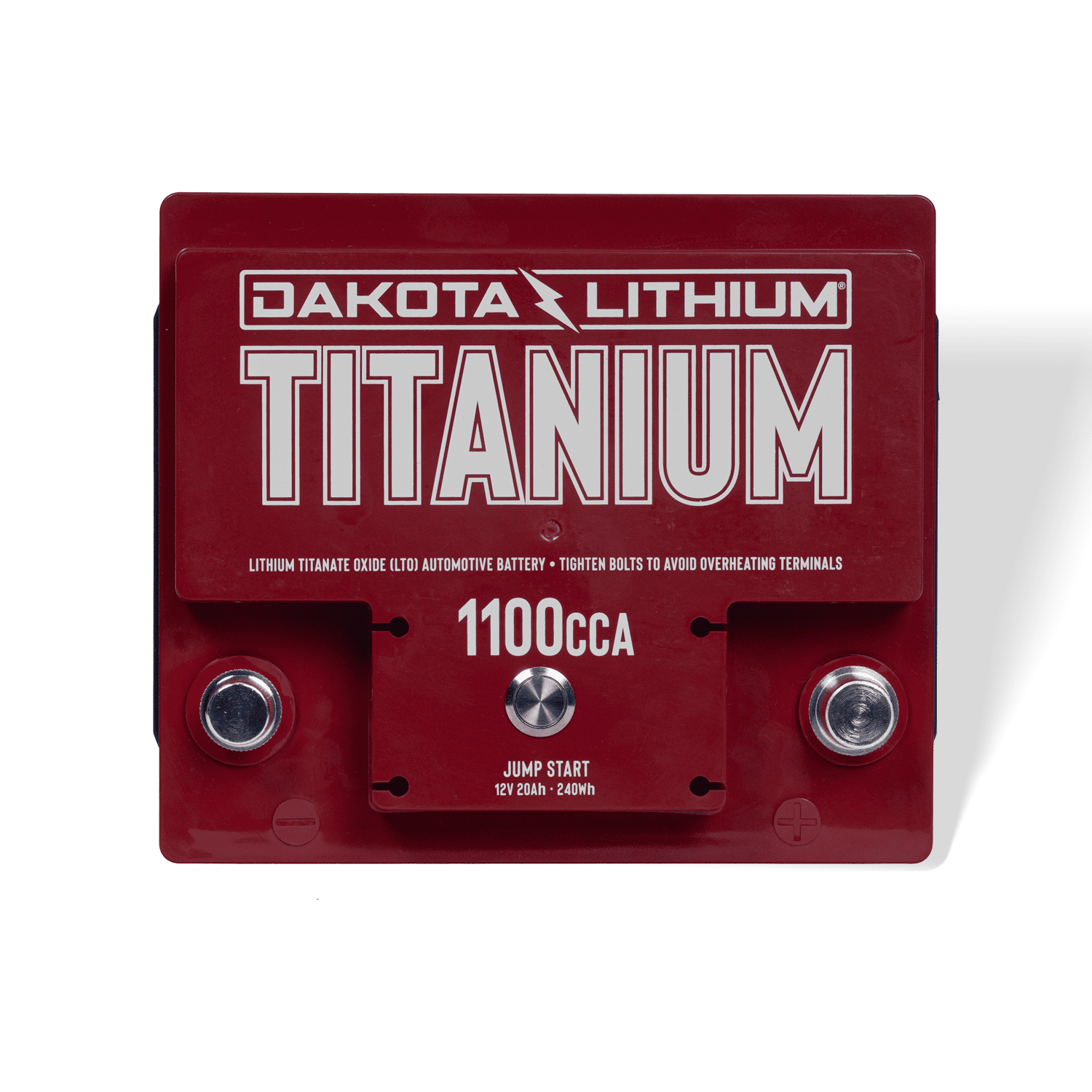

Emergency Jump Start Technology

This feature is designed with the possibility of a drained battery in mind. The built-in Battery Management System (BMS) Jump Start function retains a 25% state of charge. When activated, it releases this remaining 25% to help you start your vehicle. If you accidentally leave your lights on and drain your battery, simply press the jump start button to get your vehicle started!

Lifecycles (Battery Lifespan)

10,000 Cycles

Operating Temperature

-40°C - 60°C

Max Continuous Discharge

Peak charge acceptance 220A max for 30 seconds, 220A max BMS cutoff. Max continuous charge 200A. 14.4V recommended, 15.5V max. BMS protection from overcharging will cut off at 15.5V. LiFePO₄-compatible charger that charges at the recommended 14.4 volts.

Max Charge Voltage

15.5V

Max Charge/Alternator Size

Peak charge acceptance 220A max for 30 seconds, 220A max BMS cutoff. Drop-in replacement for lead acid and AGM starter batteries for vehicles. Limited to a max alternator size of 220 amps or less per battery (link multiple batteries in parallel for alternators >220 amps).

High-Temperature Protection

-4°F - 185°F (85°C)

Low-Temperature Protection

None

Charge Temperature

-140°F (-20°C - 60°C)

Discharge Temperature

-40°F - 140°F (-40°C - 60°C)

Approx. Charge Time

6.67 hrs with 3A, 2 hrs with 10A

Internal Heating

None

IP Rating

IP65

Certifications

UN38.3

ISO 9001:2015

Dakota Lithium is ISO Certified per 9001:2015 standards, and select models are produced in ISO 14001 certified facilities.
