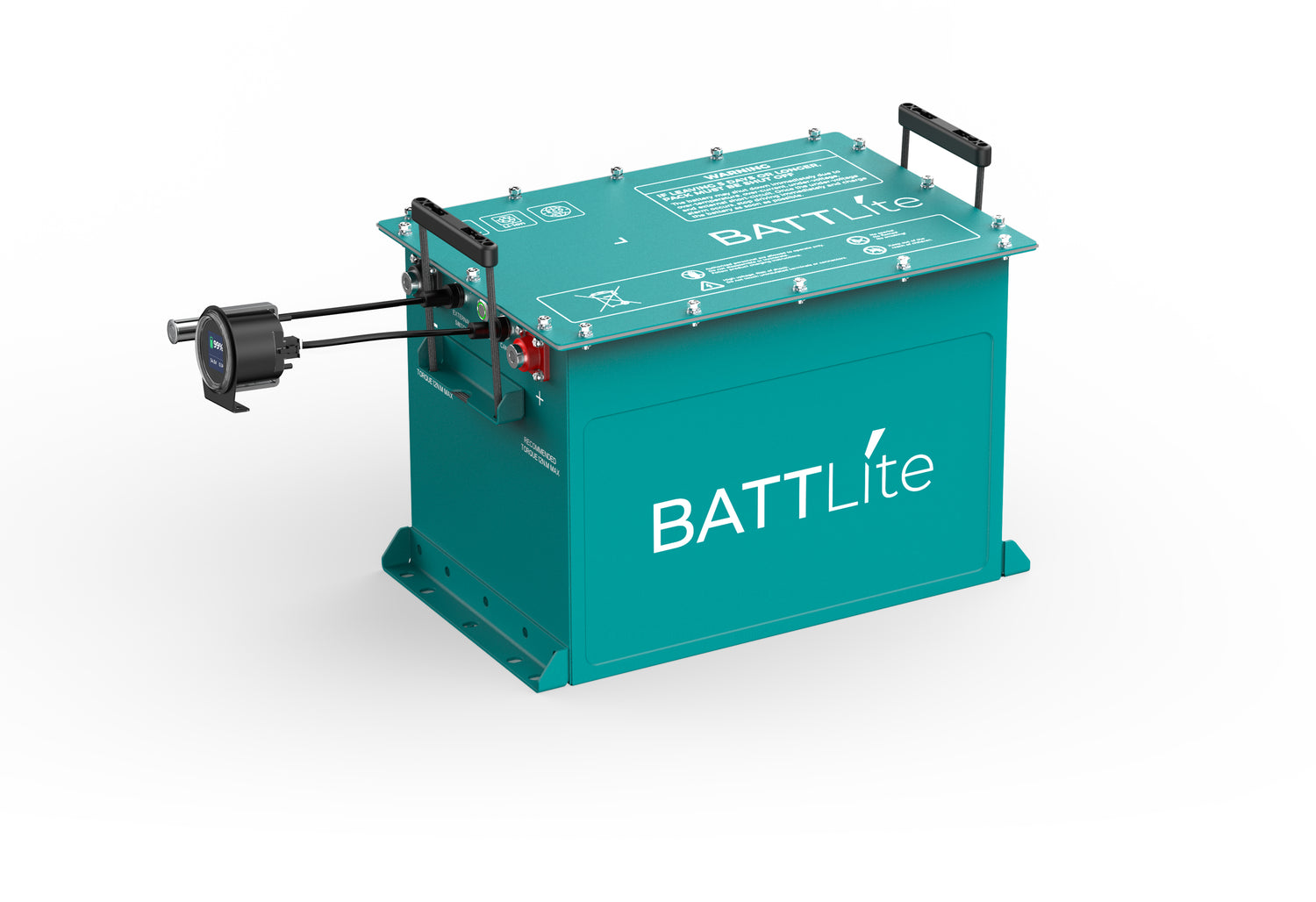

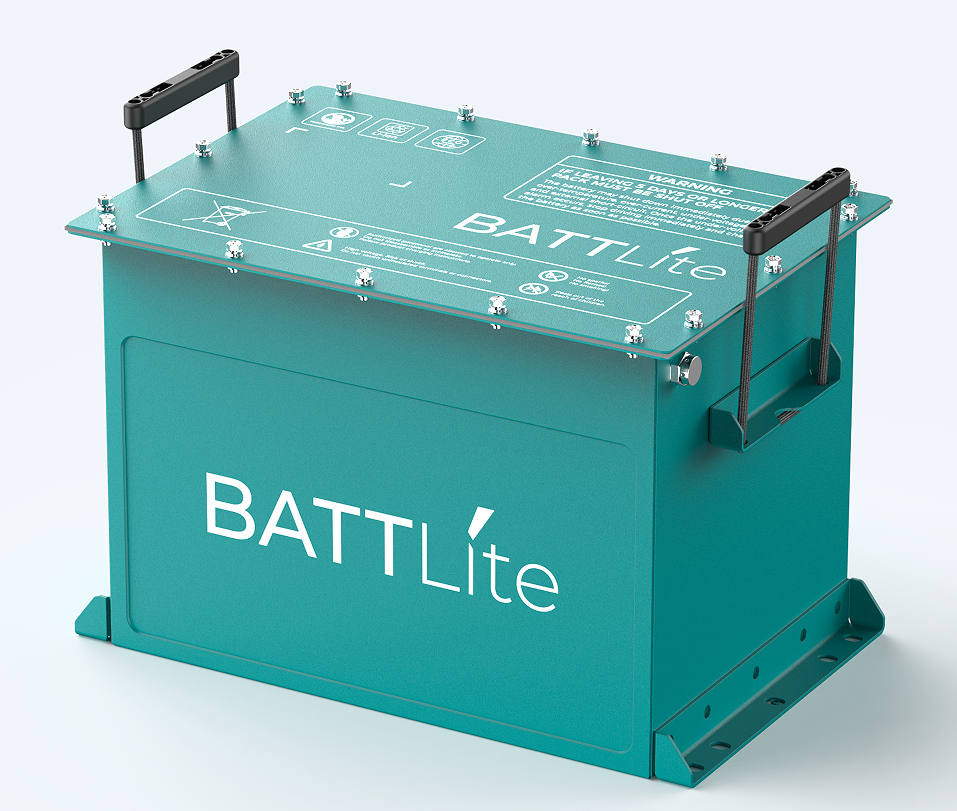

BATTLite by Roypow - BAT5000 51.2V 100Ah Bundle
0 Reviews
SKU:
BAT5000-H01-002542Save Big Today – Prices Won’t Last!
Guaranteed Safe Checkout
Location:
10899 Kinghurst Dr, Suite 245, Houston, TX 77099Lets Talk You can reach out to us at:
1-888-409-5430
Original Products
Only parts from trusted brands
Fast & Free Delivery
Free Shipping over $100
30 Days Returns
30 days open purchase
Dedicated Support
We support both Sat & Sun
Description:
8 years warranty (5 years full replacement plus 3 years pro-rated)
IP67 Ingress Rating
With Bluetooth
Support remote OTA upgrades via the Bluetooth-enabled APP.
With extra external button switch
Ultra-Compact Design: Cell-to-Pack (CTP) compact design to fit more cart.
Pass Automotive-grade UL2271 vibration and thermal runaway test.
Same workshop and quality control as RoyPow premium brand.
UL2271 certified product
Battery System Information
|
Parameter |
Unit |
Specification |
Cell Specification |
|
Configuration |
- |
16S1P |
- |
|
Rated capacity |
Ah |
100Ah |
100Ah |
|
Rated voltage |
V |
51.2 |
3.2V |
|
Maximum voltage |
V |
58.4 |
3.65V |
|
Minimum voltage |
V |
44.8V@>5℃<br>40V@≤5℃<br>36.8V@>100A (Discharge) |
2.8±0.05V@>5℃<br>2.5±0.05V@≤5℃<br>2.3V@>100A (Discharge) |
|
Standard capacity |
kWh |
5.12 @ 0.5C, 25℃ |
- |
|
Weight |
Kg |
50±3 |
- |
|
Maximum discharge current |
A |
300 (@30S, 25℃, SOC50%, BOL) |
- |
|
Maximum charging current |
A |
100 (@5S, 25℃, SOC 50% BOL) |
- |
|
Standard continuous discharge current |
A |
100 (@25℃, SOC50%, BOL) |
- |
|
Continuous charging current |
A |
30 (@25℃, SOC 50% BOL) |
- |
Operating Temperature
|
Parameter |
Unit |
Specification |
|
Charging working temperature |
℃ |
0~55 |
|
Discharge working temperature |
℃ |
-20~55 |
|
Storage temperature (short-term, within 1 month) |
℃ |
-20~45 |
|
Storage temperature (long-term, within one year) |
℃ |
0~35 |
Additional Specifications
|
Parameter |
Unit |
Specification |
|
Standard Charge (@ 25℃) |
- |
Constant Current: ≤0.5C<br>Constant Voltage: 3.65V<br>End Condition (Cut off): ≥0.02C |
|
SOC status before shipment |
- |
SOC 50%±3％ |
|
Self-discharge rate |
% |
Max 3 (@SOC 100%, 25℃, Loss/Month, @BOL) |
|
Safe reliability |
- |
GBT Certificate cell |
|
Insulativity |
MΩ |
Min 20MΩ/1000VDC @25℃±5℃, RH50% |
|
Cooling mode |
- |
Natural (Passive) Convection |
|
Working range of SOC |
% |
0~100% |
|
Ingress protection |
- |
IP67 |
|
Cycle life |
- |
>3500 @25℃, 0.5C charge, 1C discharge, DOD 70%(SOC30~100%) |
|
Remaining capacity at end of life |
- |
EOL 70% (According to warranty period, driving pattern, temp. profile, etc) |
